DVI LCD Console Drawers Screen Rotate Version
Model No.︰KVM-2408WPD-M5
Brand Name︰Annso
Country of Origin︰Taiwan, China
Unit Price︰-
Minimum Order︰-
Product Description
Features
•Facilitated by screen rotate function
• Support USB-DVI & Audiointerface
• Support digital DVI and analog VGA input signal
•Front 1x USB, Rear 2x USB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
•Additional two USB console port to add local KB/Mouse
•Build in 2x 2 watts stereo speakers
• Durable 104-key keyboard and touch pad
• Quick and simple installation
• Self-locking and auto release rails for ultra-convenience
|
Part No. |
KVM-2408WPD-M5 |
||||
|
Direct no. of Computers |
8 |
||||
|
Maximumno. of Computers |
8 |
||||
|
LCD |
Size |
23.8 inch FULL HD display |
|||
|
Backlight |
LED |
||||
|
Resolution |
1920*1080 ( support resolution up to 1920*1200 ) |
||||
|
Max.color |
16.7M |
||||
|
Luminance |
250 cd/m2 |
||||
|
View Angel(H/V) |
178 / 178 |
||||
|
Contrast Ratio |
1000 : 1 |
||||
|
Port Selection |
Push Button, Hotkey |
||||
|
USB Local console |
Yes , USB x2 for KB/ Mouse |
||||
|
USB HUB |
1x Front , 2xRear USB 2.0 Type A for Peripheral USB Device |
||||
|
Touch Screen |
Yes , for option ( Driver needed ) |
||||
|
KB/Mouse Emulation |
USB |
||||
|
Rack Depth |
600mm to 1300mm ( rack cabinet front rails to rear rails ) |
||||
|
Power |
100-240V AC 50/60Hz via IEC Type power cord |
||||
|
Environment |
Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% - 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
||||
|
Physical Dimensions/ Net Weights |
448x44x790mm (WxHxD) / 19.5KG |
||||
|
Packing Dimensions/ Gross weights |
580x190x840mm / 23 KG |
||||
|
Accessory |
|||||
|
1.8meter IEC Type Power Cord |
|||||
|
Option Relate Item |
|||||
|
CD-018 |
1.8meter DVI-D Cable |
CU-018 |
1.8meter USB Cable |
||
|
CA-018 |
1.8meter Audio Cable |
|
|
||

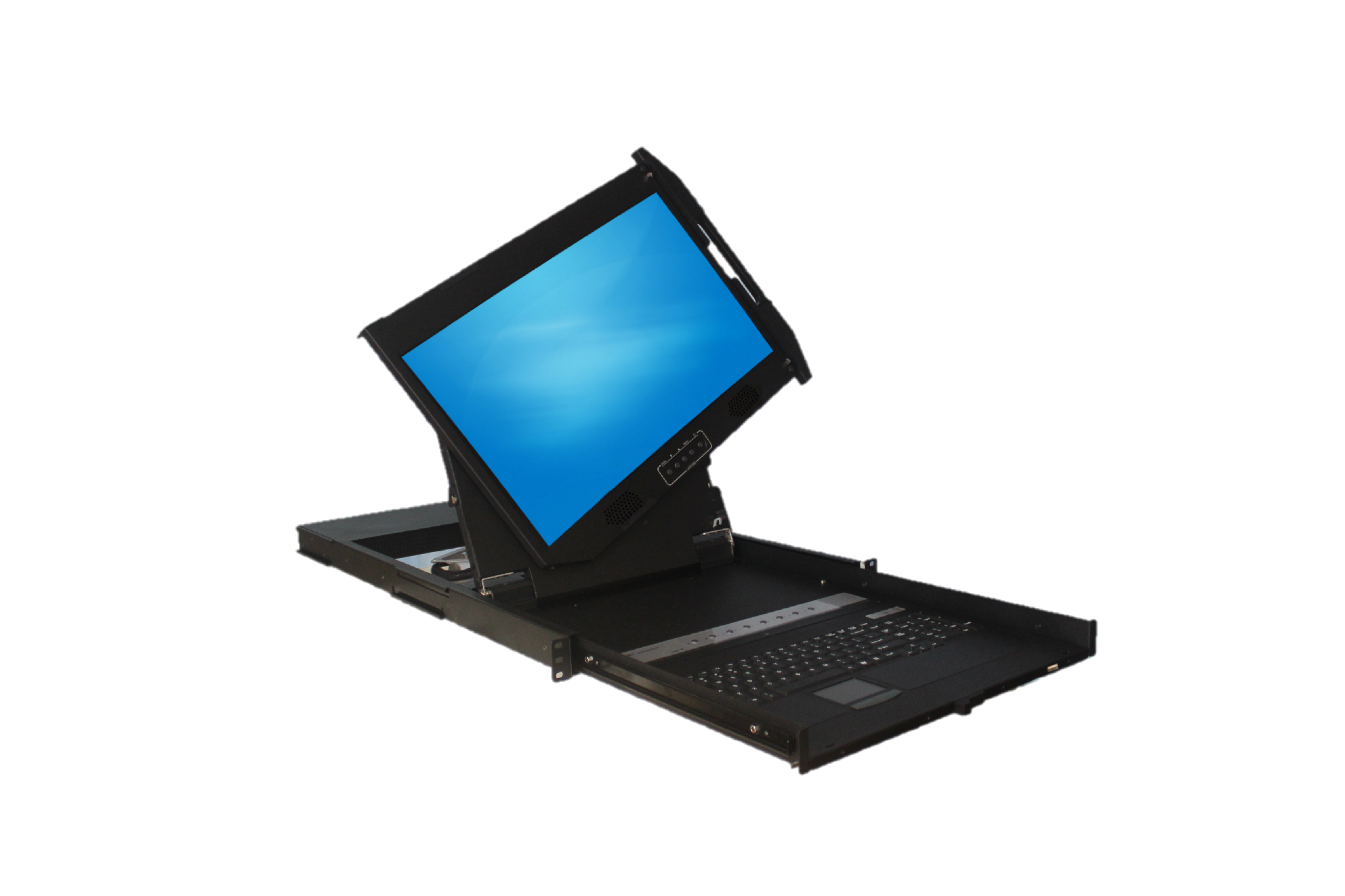

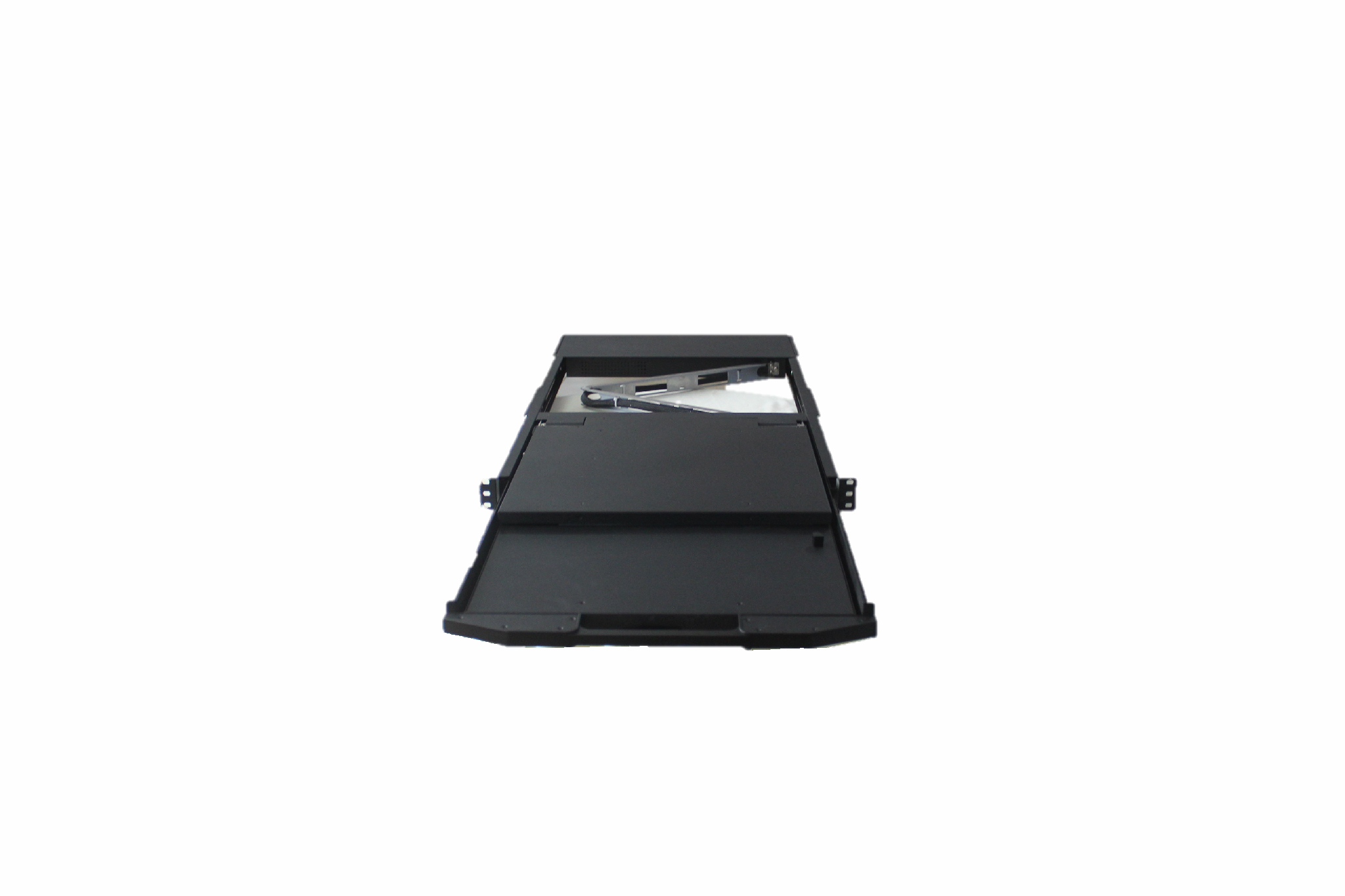

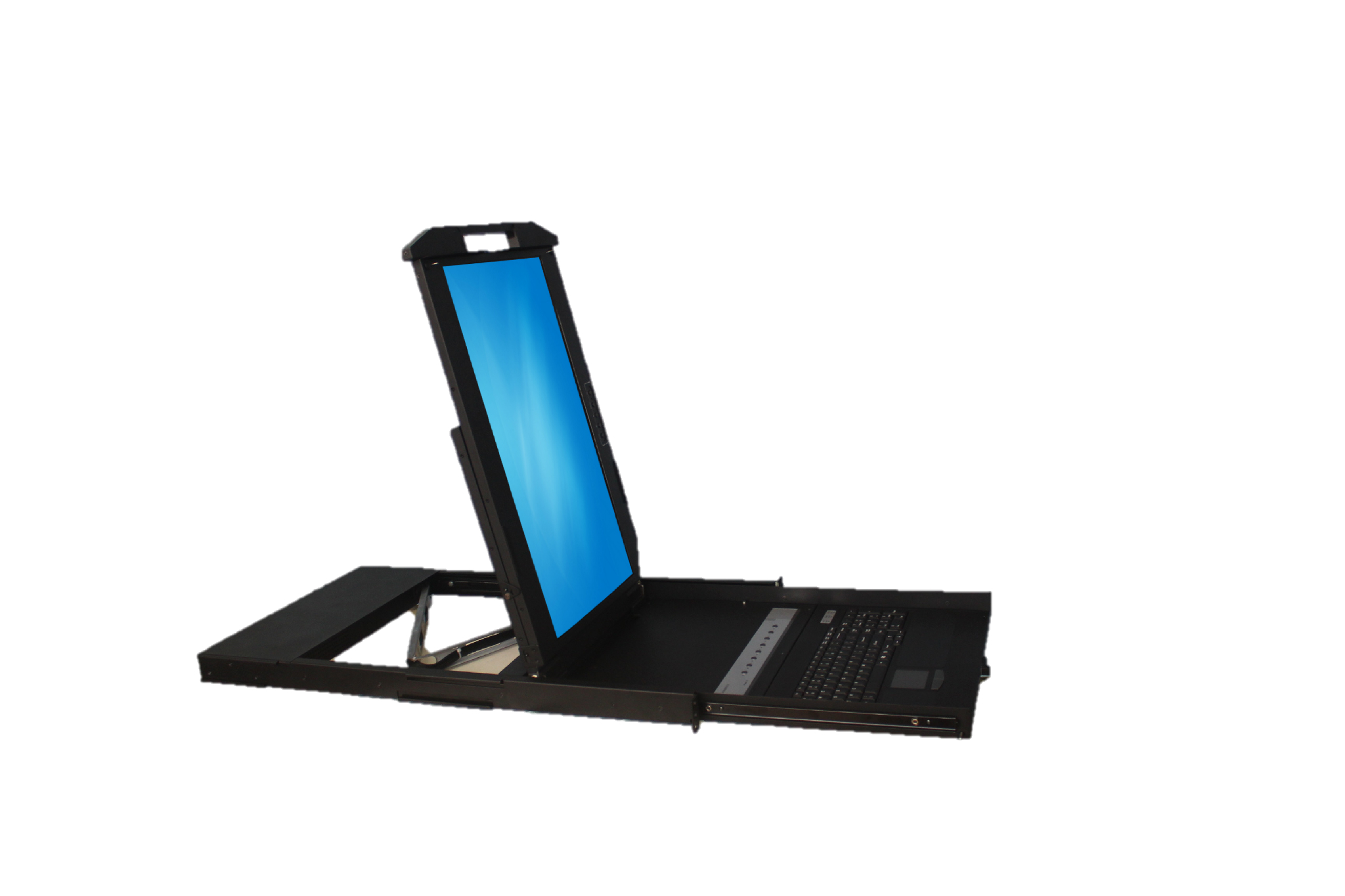

Product Image
